| This controller uses a powder clutch/brake to control the winding/unwinding tension
of paper or wire by varying the excitation current. By directly attaching
a touch roller near the external surface of the material roll, we can
automatically determine diameter variation. The excitation current
is increased/decreased according to this variation, automatically maintaining
constant tension in the material. |
 |
| Features |
| 1 |
Open loop control Hunting never occurs due to the use of open loop control. |
| 2 |
Simple handling Since the roll diameter is automatically determined, you only
need to set the desired tension once and the controller will ensure
it is kept constant. |
| 3 |
Simple initial settings Initial settings are facilitated due to an integrated
angle sensor which automatically provides compensation adjustment. |
| 4 |
Taper tension function provided Taper tension can be set with an integrated
dial. |
| 5 |
An original fabric position setting signal is provided. |

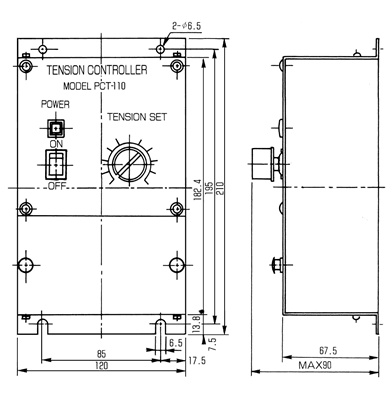

| Dimensional outline drawings |
Specifications |
 |
| Type |
PCT-110 |
| Method |
Winding diameter proportional control by angle detection
of roll diameter surface |
| Application |
Unwinding/winding |
| Power source |
AC100/110V 50/60Hz |
| Output signal |
DC0-10V (Load more than 10kΩ) |
| Structure |
Steel plate, wall mounting, protective enclosure |
| Operating temperature |
0-40°C (Storage temperature -10-50°C) |
| Weight |
1.5kg |
| Paint color |
Munsell 5Y7/1 |
| Applied amp |
PS-6.0A |
| Applied sensor |
'SEP-11 |
| Compatible clutch/brake |
All POC/POB/PRB type
(Depending to amplifier) |
|
|
| Input/Output connection diagram |
|
|
|
