Brake <SBR-82-18>

Clutch Brakes >Product Information >

Non-excitation electromagnetic clutches/brakes >Spring closed brake >

Brake

<SBR-82-18>

Type	SBR-82-18
Static friction torque Nm	1.8
Rated voltage DC-V	24
Power consumption W(at75°C)	12
Weight kg	0.8

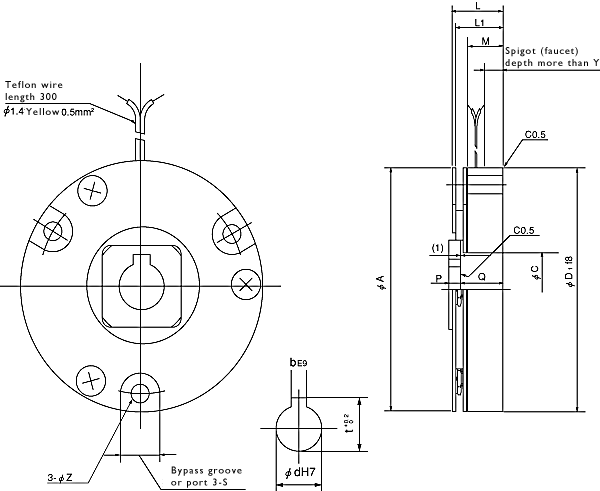

Unit:mm

Diameter direction
A	80
C	23
D₁	80

Shaft direction
L	25
L₁	25
M	16.5
P	5
Q	20
Y	4

Mounting
P.C.D	70
S	8
Z	4.5
Shaft hole
d	14
b	5
t	16.3
