Brake <SBR-132-120>

Clutch Brakes >Product Information >

Non-excitation electromagnetic clutches/brakes >Spring closed brake >

Brake

<SBR-132-120>

Type	SBR-132-120
Static friction torque Nm	12
Rated voltage DC-V	24
Power consumption W(at75°C)	30
Weight kg	2.3

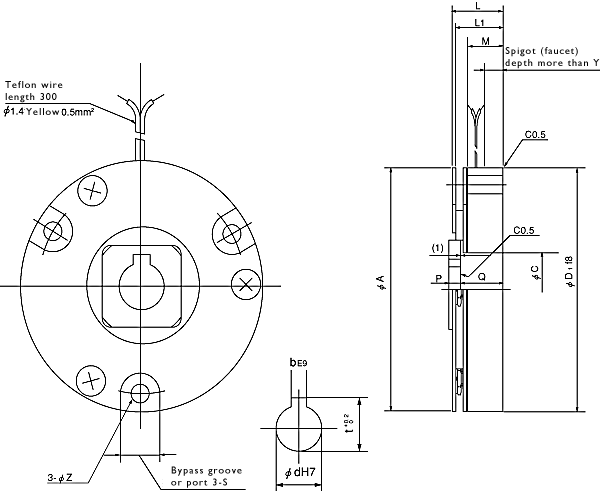

Unit:mm

Diameter direction
A	130
C	25
D₁	130

Shaft direction
L	30
L₁	30
M	14
P	10
Q	20
Y	5

Mounting
P.C.D	118
S	10
Z	5.7
Shaft hole
d	20
b	7
t	23.3
