Brake

<SBR-152-140>

Type	SBR-152-140
Static friction torque Nm	14
Rated voltage DC-V	24
Power consumption W(at75°C)	30
Weight kg	2.6

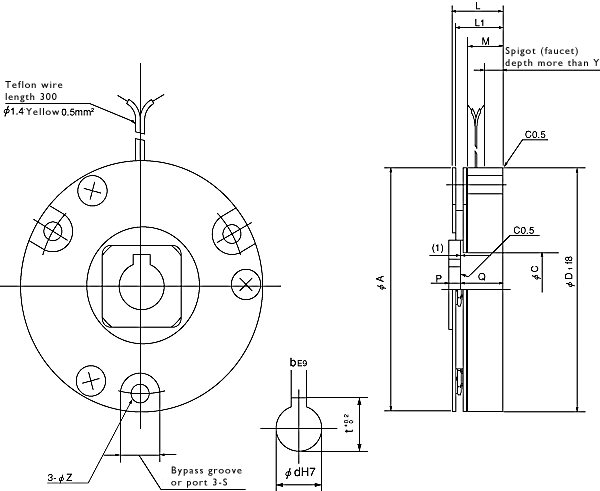

Unit:mm

Diameter direction
A	150
C	30
D₁	150

Shaft direction
L	25
L₁	25
M	12
P	8
Q	17
Y	5

Mounting
P.C.D	135
S	11
Z	6.6
Shaft hole
d	25
b	7
t	28.3
