Brake <SBR-132-65>

Clutch Brakes >Product Information >

Non-excitation electromagnetic clutches/brakes >Spring closed brake >

Brake

<SBR-132-65>

Type	SBR-132-65
Static friction torque Nm	6.5
Rated voltage DC-V	24
Power consumption W(at75°C)	16
Weight kg	2.2

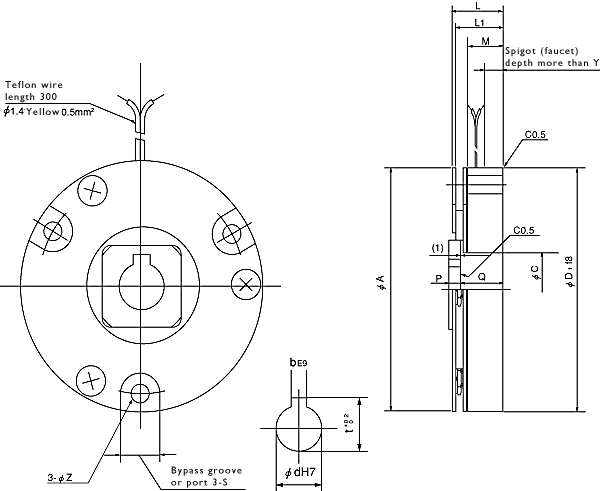

Unit:mm

Diameter direction
A	130
C	25
D₁	130

Shaft direction
L	25
L₁	25
M	9
P	10
Q	15
Y	5

Mounting
P.C.D	118
S	10
Z	5.7
Shaft hole
d	20
b	7
t	23.3
